Your position:Home > Products > Baking Machine > Wafer Biscuit Making Machine >

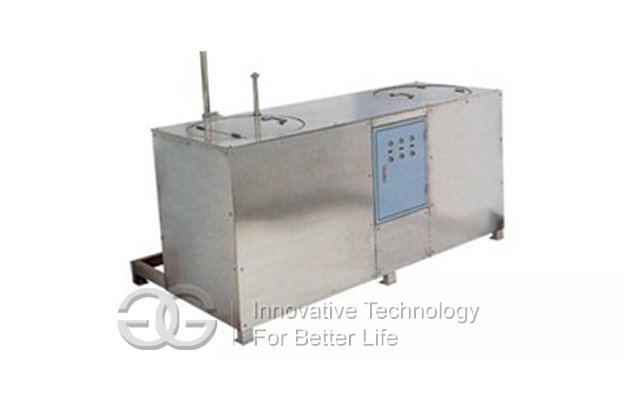

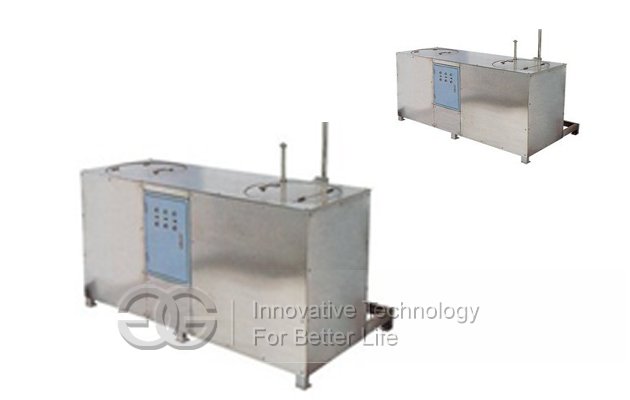

Stainless Steel Blender Machine

MOQ:1
Certification: CE
Supply Ability: 100 sets per month
PAY METHOD: WEST UNION L/C T/T CASH
LOADING PORT: Qingdao port

Live Chat

Leave Message

Application

The blender is used to produce batter. We have semi-automatic model and automatic model.

Main Feature

The blender can mix the powder idiomatically, you can choose input the batter to the oven idiomatic or by manual.

Features

This makes the batter for the system to produce the wafers. This system constitutes of: batter mixing tank and batter storage tank and pumps and fittings for transferring batter. Batter mixing tank, batter transfer pump and pipes and fittings all adopt Stainless Steel 304 food quality material. Good tightness is required for electric control cabinet; Capacity of the batter will be 25kgs of flour per batch which can be converted into about 65 kgs batter within 5 minutes of mixing. Batter Mixer will have flat type lid to cover the mixing units. There is a new added batter filter.

The machine is the mixing system, the first technology processing equipment in wafer manufacturing. It adopts the separate delivery and automatic circulation system.

Material: the machine frame is made of steel with international standard and the cover adopts imported 304 stainless steel plate with thickness of 1.2mm,also can customize it into other thickness.

Instruction:

1. Material :all adopts 304 Stainless Steel ,SEW Motor ,Siemens Touch Screen.

2.Auto-weighing of wafer and ingredients,Auto-control of temperature after setting ,it will finish the whole process of pulp to the wafer baking oven steadily.

3.Capacity of this equipment will be 25 kgs of flour per batch which can be converted into about 65 kg batter pulp every time.

4.Used to make batter to produce wafers.

Technical Data

Model	GGDL-T-8
Slurry Barrel Volume	95L
Beating Time	5-10mins
SUS304 Material Parts	Slurry barrel, cover, shell
SUS304 Thickness	More than 1.0mm
Food Touching Parts Material	SUS304
Water System	Automatic water control
Main Motor	3Kw
Slurry Pump Motor	0.75kw
Electric	380V, 50Hz, 3-phase
Dimension	1300660930mm
Weight	200kg

FAQ

1.Q:Can I get some samples?and what is the delivery time?

A:We are honored to sent you samples for quality check.for delivery time,10-20 days after confirm the sample order.

2.Q:Do you have the products in stock?

A:Yes,we have some model products can supply to you.

3.Q:Can I mix different modles in one container?

A:yes,different modles can be mixed in one container,but the quantity of each model should not be less than MOQ.

4.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the end of the production,every product will be fully assembled and carefully tested before it's packed for shipment.

5.Q:What's is your warranty terms?

A:We offer different warranty terms for different products,please contact with us for detailed warranty terms.
