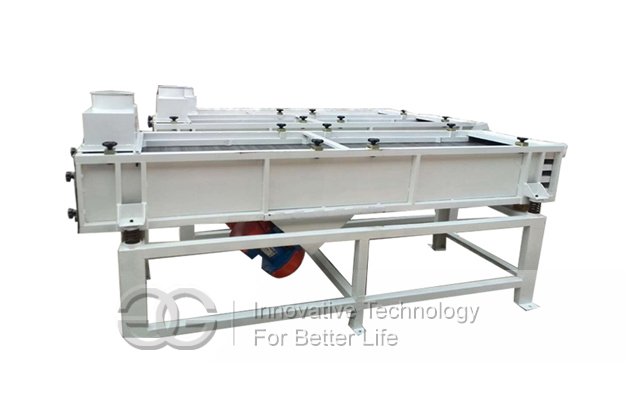

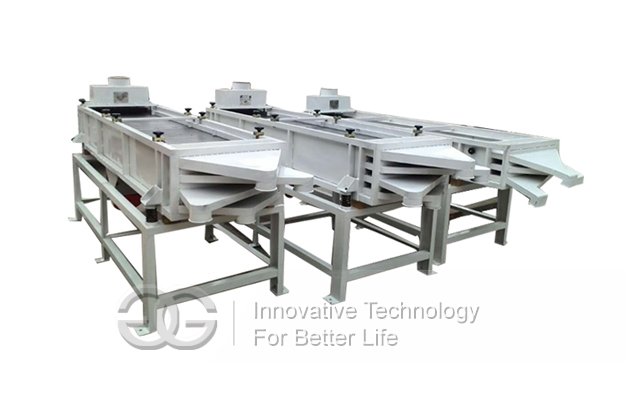

Multi-layer Buckwheat Linear Vibration Classifier

  • MOQ:1 set
  • Certification: CE
  • Supply Ability: 100 sets per month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • LOADING PORT: Qingdao port

Application

Multi-layer Buckwheat Linear Vibration Classifier can be used for grading different size buckwheat before shelling,which can improve shelling ratio in the shelling processing.

Main Feature

Materials are tossed at the same time move as a straight line. It can equip with single-layer or multi-layer screen to achieve the target of rating, impurity, removing powder, testing, washing, dehydration etc.
Features
Multi-layer buckwheat linear vibration classifier uses wonderful vibrant motor as power source,so that the materials can be thrown up on the sieve and forward to making a linear moving path.Linear vibrating screen is made of vibrating motor, screen box, screen, body mass vibration and damper.

Functional principle:
When the two vibrating motor that installed vertically on the sieve relatively rotate, the eccentric block of two vibrating motors produce rated excitation force. The horizontal excitation force cancel each other out, the vertical excitation force is transported to the whole screen surface through the body mass vibration. Materials do the jumping movement on the screen surface to the outlet because of the vertical excitation force. Materials which smaller than the mesh drop into the lower layer and discharge from the outlet after doing the jumping movement. Because of the reasonable screen, after vibrating screen, we can get materials of different concentration particle sizes and done the rating work of materials.
Technical Data
Model GGXL-2 GGXL-3
Power 0.75kw
Dimension 3000*900*1000mm 3050*1020*1220mm
Layer of Screen 2 3
Weight 200kg 350kg

FAQ
1.Q:How many grades will your machine arrive?
A:Generally,we grade your buckwheat into 3 or 4 sizes,which can assist you to shell your buckwheat much more easier.
2.Q:Must we use the grading machine before we shell the buckwheat?
A:It is essential to match with the vibrating screen with the buckwheat hulling machine.
3.Q:Is it ok to process the tartary buckwheat ?
A:Yes,the vibrating screen can work well no matter yours is sweet buckwheat or tartar buckwheat,no need to worry.
4.Q:How long is the warranty?
A:Six months warranty and 24 hours online service.
5.Q:How to pay?
A:We accept western union,T/T,LC etc,it is ok to know little about import processing,we factory have rich experience in export,so we will assist you step by step from place the order to receive the machine.
