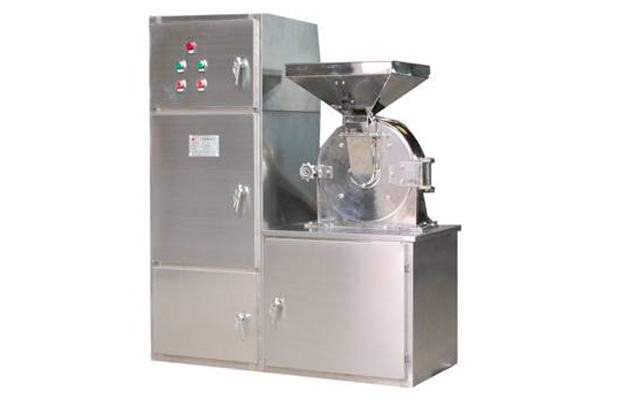

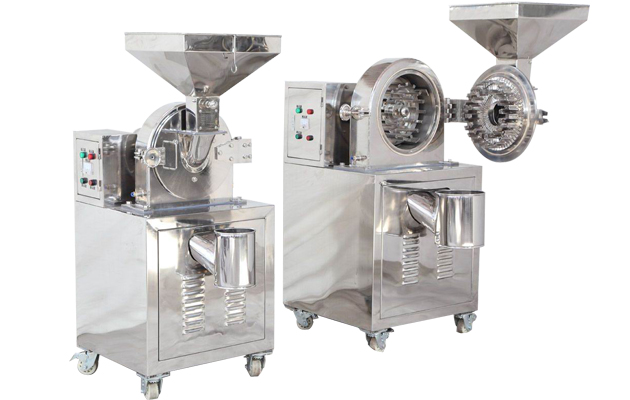

Large Model Stainless Steel Corn Grinding Machine

Corn Grinding Machine
Corn Grinding Machine
Corn Grinding Machine
<
>
Chat Online
Features

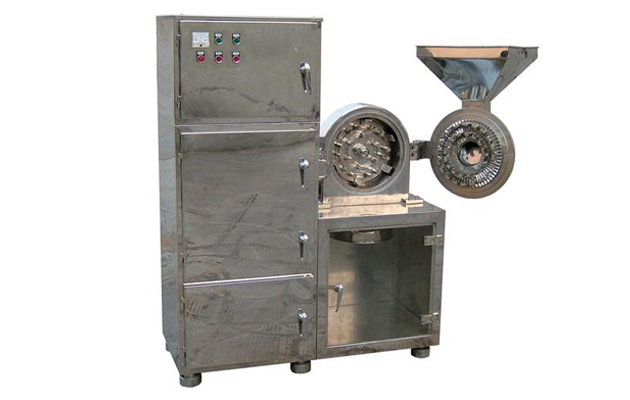

This machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
It’s inner wall is processed finely, so it is smooth and level.

Advantages:
All the parts in the chamber which contact materials surficial parts are made of stainless steal, it’s in conformity with the requirements of state standard and meet the requirements of GMP
According to customer needs, may increase water cooling device and conveyor screw.Details please contact us.
Technical Data

Model		 Capacity(Kg/h) Work noise Thickness(mesh) Voltage(V) Power(KW) Speed of main shaft  Size(mm) Weight(kg)
GG200 30-120 <85 10-200 220/380 2.2 4200 480*520*1040 80
GG300 60-200 <85 10-200 380 5.5 4200 750*600*1260 180
GG400 80-300 <85 10-200 380 7.5 4200 780*700*1350 260
GG500 100-500 <85 10-200 380 11 4200 800*900*1550 320
GG600 500-1000 <85 10-200 380 15/22 4200 1200*1000*2000 520

Message

FAQ
    1.Q:Have you exported to our country?
      A:We have wide market all around the world,such as Africa,America,and Asia.All the reputation depends on the quality!Give us a chance ,we can feed back a satisfaction!
    2.Q: We are not in China,how can you ship machines to us?
    A: Do not worry about Shippment.We can help you to arrange shippment for you by Sea, by Air and by Express.If you have agent in China, welcome to your agent to come to us to pick up cargo if you like.
    3.Q:Do you have CE Certification?
    A:Yes,all our machine have the CE,BV,SGS,CCC,ISO9000.
    4.Q:Is it easy to operate?can you give some instruction?
    A:The machine is not difficult to be operated,also we have the video to show you how to operate.
    5. Q:How long is the warranty?
    A:Six months warranty and 24 hours online service.
