Wood Pellet Making Machine
  • wood pellet making machine

    wood pellet making machine

  • wood pellet making machine

    wood pellet making machine

  • wood pellet making machine

    wood pellet making machine

  • wood pellet making machine

    wood pellet making machine

  • wood pellet making machine

    wood pellet making machine

  • wood pellet making machine

    wood pellet making machine

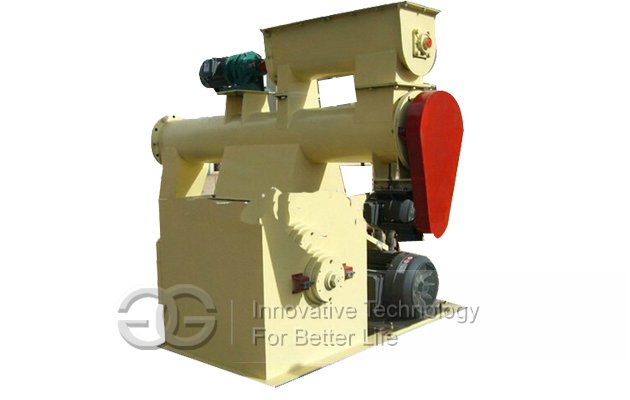

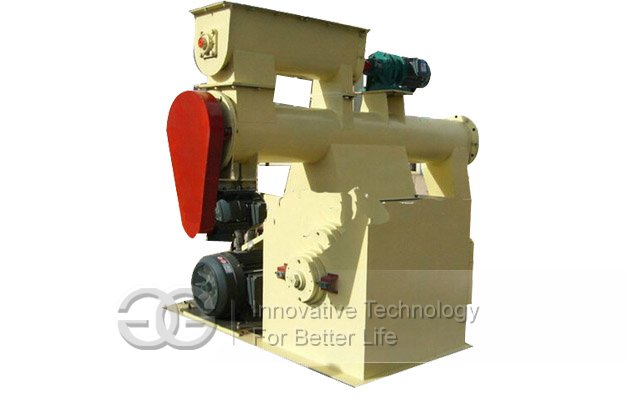

Wood Pellet Making Machine
  • Brand:GELGOOG
  • PAY METHOD:WEST UNION L/C T/T CASH
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Features
  • Technical Data
  • FAQ
Brief Introduction to  Wood Pellet Making Machine

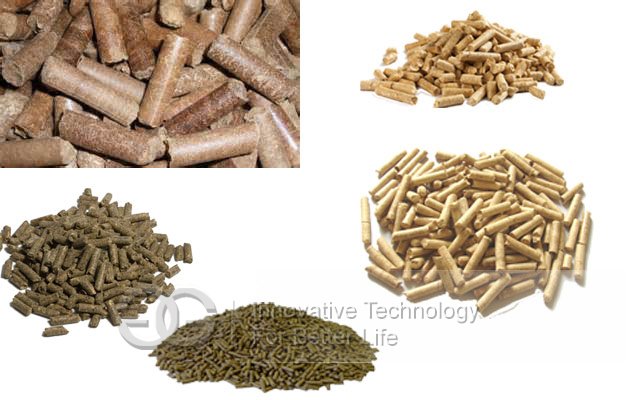

Wood pellet Making machine is specially designed for mass industrial production of wood pellets. The raw materials are easy to obtain, like groundnut shell, sawdust, paddy straw, wheat straw, palm husk, rice husks, etc and many other agro and forestry wastes. The final pellets can be used for industrial boilers and large power plants as well as home heating.

Remarkable Features of Wood Pellet Machine
1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive.
2. The drive part of the machine including motor optimize, the high quality NSK bearings and NAK oil seals ensure high efficient and steady driving with low noise.
3. The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.
4. Special design of feed conditioner adopts the frequency-conversion speed regulating control to guarantee wood pellets quality.

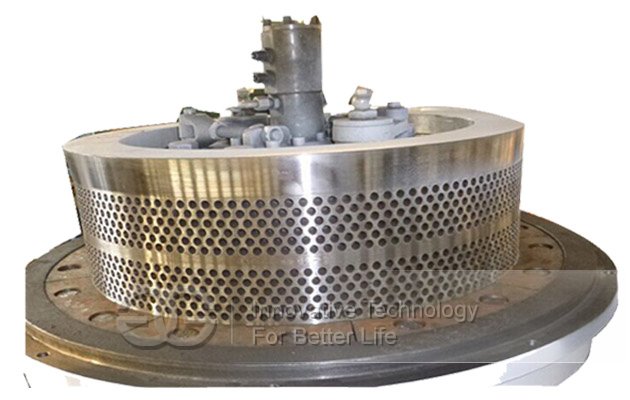

5. The ring die is made by international advanced technology, has long service life and ensure smoothly pelletizing and high quality.
6. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
7. Permanent magnet device can remove impurities in the pelletizing process.
 wood pellet making machine
Making Wood Pellets:Wood Pellet Making Machine
A. Wood pellet making machine has wide application in commercial use with relatively large production capacity, 300~3500 kg/h. While wood pellet machine is popular with home use, capacity from 30-2000kg/h.
B.Wood pellet machine adopts imperative feeding device, ensuring a continuous & even feeding speed. Wood pellet making machine adopts vertical feeding way, that is to say, materials depend on its own weight dropping into the pelletizing chamber. So the feeding speed of flat die pellet mill cannot be controlled automatically.

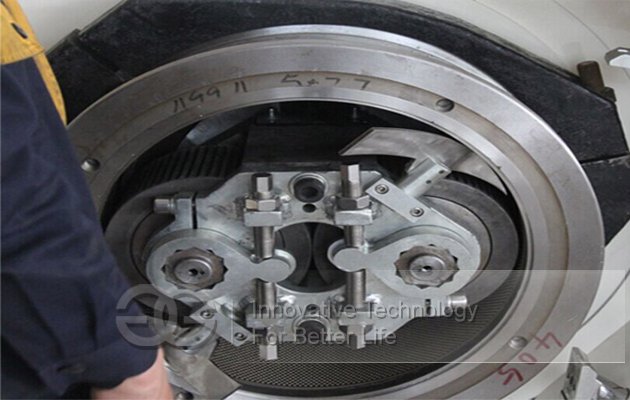

C. The roller shell of ring die pellet mill for making biomass pellets doesn't completely cover the roller, reducing wear and prolong service life.
D. Ring die pellet mill can be applied to making various biomass materials into pellets, especially for materials hard to be pelletized or with much moisture.
E. Ring die pellet mill can be equipped with inner oil spraying device, making pellets surface more smooth and solid.

If you want to start medium or large size wood pellet plant for commercial use, you should firstly consider 3 factors: working efficiency, pellets quality, profits. Working efficiency: ring die pellet mill is highlighted with high efficiency and large capacity. Pellets quality: biomass pellets produced by ring die pellet mill are more solid and smooth. Cost- effective: though ring die pellet mill is relatively more expensive, while compared with its long service life and low-malfunction rate, it is really a cost-effective machine. Combine all these factors together, ring die pellet mill is best choice.

Operating Instructions of Industrial-use Ring Die Wood Pellet Mill
◇ Have a better understanding of the pellet mill structure and performance, and strictly follow the operation instructions and professional technical personnels’ guidance.
◇ Pay attention to regular maintenance and repair so as to extend the machine service life.
◇ The operator should stay at the working area while pellet mill is under running condition.
◇ It’s wise to choose appropriate pellet mill according to different raw materials and capacity requirements.
 wood pellet making machine
Model  GGN-420
Power  90KW
Capacity  4-5T/H
Size  2500*1300*2450MM

1.Can change the voltage and plugs or not ?
 We are manufacturer, mostly products we can change the voltage and plugs. Pls kindly tell me the voltage and plugs that you need before the order.

2.What Methods of Payment Are Acceptable?
Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.
Western Union: we accept 100% payment via the western union.

3.What is the procedure for making claims for damages or shortages?
All of our products will get fully test before delivery. All shortages must be reported to us within 7 days of receiving the shipment. If the goods were made by carriers then damages need to be reported to them and us. Please make sure that you keep the original shipping box for them to inspect. So please report to us damages made by carriers so that we may file a claim on your behalf.
