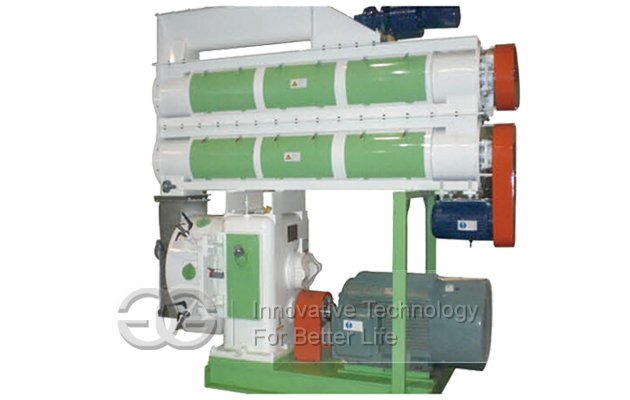

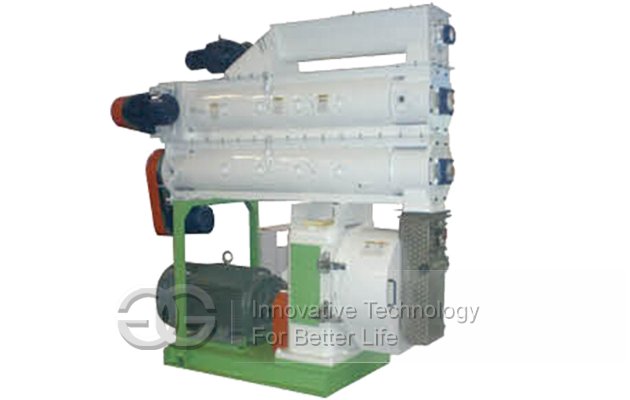

Sawdust Pellet Machine
  • Brand:GELGOOG
  • PAY METHOD:WEST UNION L/C T/T CASH
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Features
  • Technical Data
  • FAQ
Characters of sawdust pellet machine
1 Main engine drives with high precision gear, ring die in quick detaching encircling hoop type ,output higher 20% than belt drive.
2 The complete machine transmission parts include electric motor with high quality bearing, ensure high efficiency ,stable and low noise drive.
3 Large type strengthen feeding conditioner in entire stainless steel with frequent speed control.ensure the high quality of pellet .
4 Adopt international advanced righ die processed by heat treatment vacuum furnace, lengthen useful lifte and pellet is smooth with high quality.
5 With full stainless steel door, flume and pull cutter which is convenient ,reliable,
6 Customized pellet machine with double layers or three layers.
7 Pellet machine can work continuously for 24 hours, no need to stop.
8 Using frequency conversion,to avoid the nonuniform feeding due to unstable voltage.
9 Added humidity control function,make sure the humidity of feedstock is uniform and improve the quality.

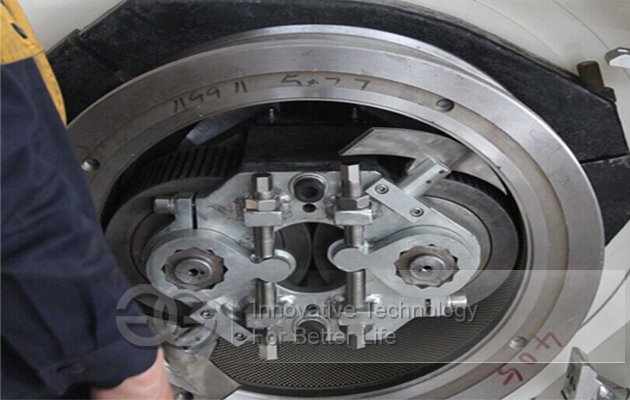

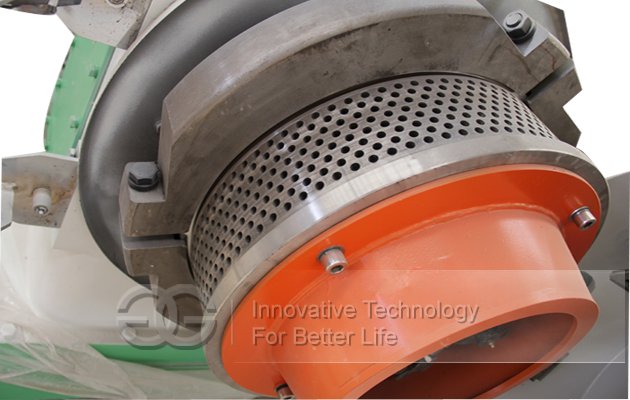

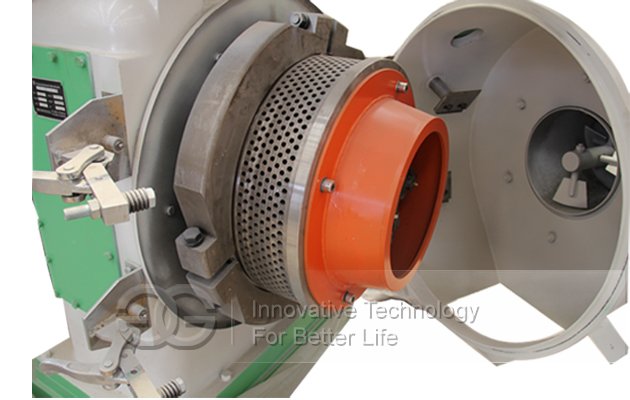

10 The ring die uses quick-release type without beam clamp,high-quality stainless steel are also adopted,and disassembly easy.
11 Customer can chose ruggedized ring die,improve the service life efficiently.
12 All of the interior accessories use excellent forging parts to make sure the machine run stably and reduce the failure rate.
13 Having multiple national design patents for inventions.

Advantage of  sawdust pellet machine
1 Feeder and conditioning device,the feeding chute adopt stainless steel material,durable;
2 Feeding system adopts electromagnetic speed regulating control,speed control,convenient and full capacity to adapt to the different material requirements;
3 Host drive with high precision gear drive,ring die adopt anchorear type and disassembly is convenient;
4 Security,has a strong magnetic magnet and overload protection device such as a safe,safe and reliable;
5 Compact structure,beautiful appearance,high yield,less consumption,easy to use,maintenance and quick.
6 Wood pellet and animal feed machine with simple structure, widely application, low noise.

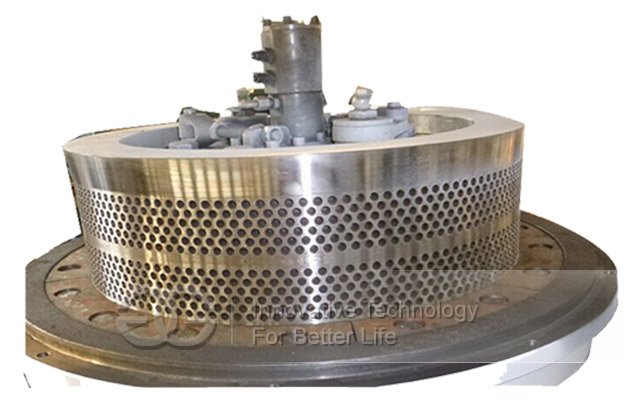

7 Ni,Cr alloy material made pellet machine ring die ,ring hole polishing,heat treatment,more wearable.
8 Pellet high hardness, smooth surface, internal maturation degree,
9 Pellet length and diameter can be customized according to clients’ needs.
10 Stable working , mechanical work, fine appearance
11 Pellet machine with reasonable structure, considerable feeding conveyor.
12 Start material can be all kinds of products,like the hard sawdust, wood,tree branch,corn cob,wheat straw,corn stalk etc.which also can be  soft material,such as rice husk, palm fiber,coconut shell, peanut shell, wood sawdust etc.
sawdust pellet machine
Type
Main engine power
(kw)
Productivity
(t/h)
Feeder power
(kw)
Conditioner power
(kw)
Ring die diameter
(mm)
Granule size
(mm)
GG-SZLH35
55
2-5
1.5
2.2
350
1.0-12
GG-SZLH42
110
3-12
1.5
4
420
1.0-12
GG-SZLH508
132/
160
5-20
1.5
5.5
508
1.0-12

1.Can change the voltage and plugs or not ?
 We are manufacturer, mostly products we can change the voltage and plugs. Pls kindly tell me the voltage and plugs that you need before the order.

2.What Methods of Payment Are Acceptable?
Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.
Western Union: we accept 100% payment via the western union.

3.What is the procedure for making claims for damages or shortages?
All of our products will get fully test before delivery. All shortages must be reported to us within 7 days of receiving the shipment. If the goods were made by carriers then damages need to be reported to them and us. Please make sure that you keep the original shipping box for them to inspect. So please report to us damages made by carriers so that we may file a claim on your behalf.
