- New Type Wet Fertilizer Granulating Machine
-
- Brand:GELGOOG
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:12 Months
- Country Of Origin:China
-

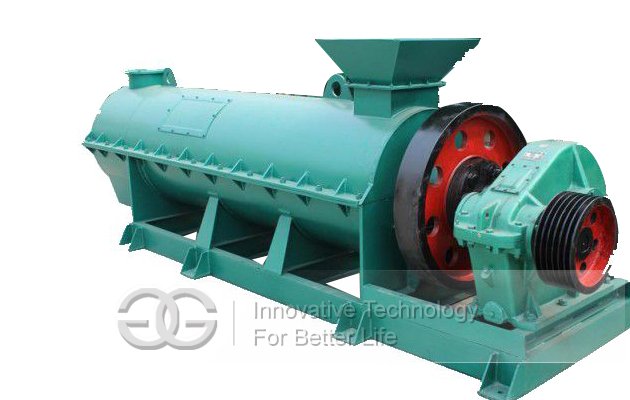

New Type Wet fertilizer Granulating Machine
-

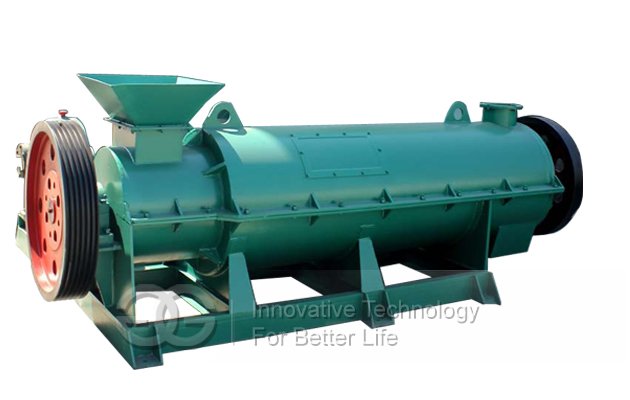

New Type Wet fertilizer Granulating Machine
-

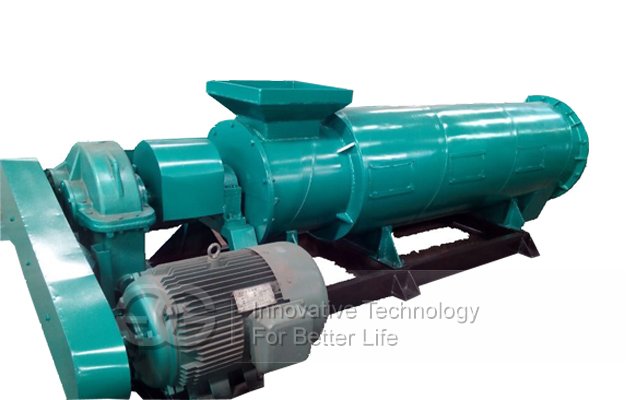

New Type Wet fertilizer Granulating Machine
-

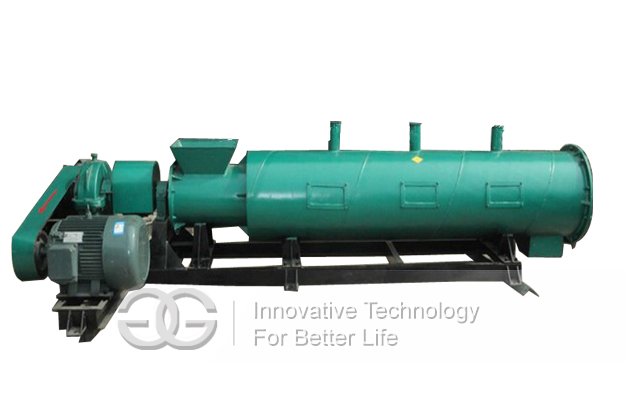

New Type Wet fertilizer Granulating Machine
-

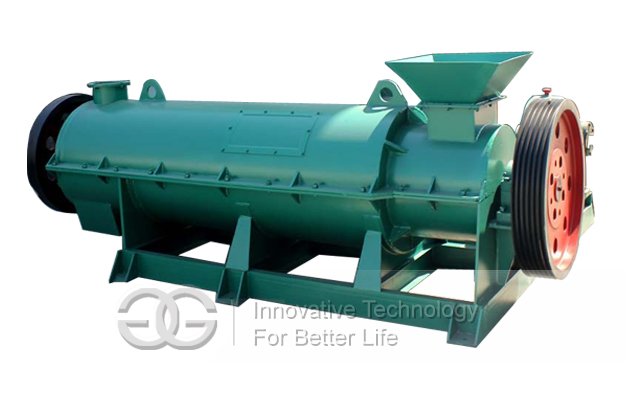

New Type Wet fertilizer Granulating Machine
-

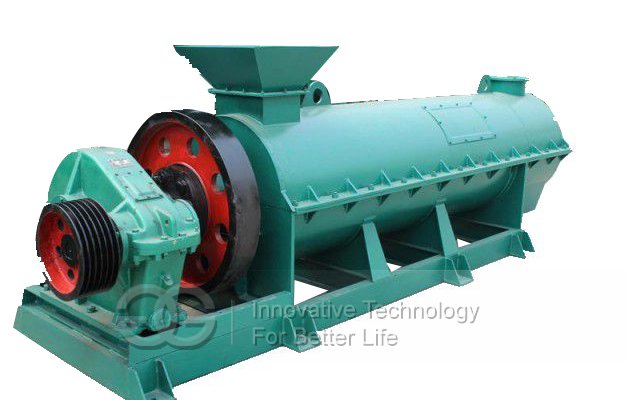

New Type Wet fertilizer Granulating Machine
-

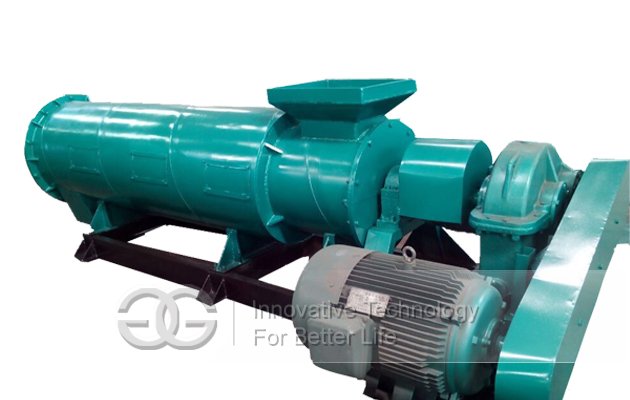

New Type Wet fertilizer Granulating Machine
- Features
- Technical Data
- FAQ
Introduction of new type wet fertilizer granulating machine:
It uses high speed rotating mechanical shearing force and the resulting air power, the continuous implementation of the fine powder material in the machine, granulating process, spheroidizing, dense, so as to achieve the goal of granulation, Usually, the lower mix amount is , the higher the speed, the smaller the particle, and vice versa.
The new organic fertilizer pellet making machine is used for granulation after fermentation of organic matter, break through the conventional organic matter granulation process, before granulation, granulation without dry ingredients, the raw materials doesn’t need drying, crushing, can directly by grinding machine make spherical particles, can save a lot of energy, produced particles is ball, organic content can be as high as 100%, achieving pure organic granulation,Using the feature that organic matter particles can set each other under a certain role the process of the growing up, Without adding binder granulation, granular solid, can be sieved directly after granulation, drying energy consumption reduction, raw material moisture content can be around 20% to 40%.
Advantages new type wet fertilizer granulating machine:
Advantages new type wet fertilizer granulating machine:
New Type Wet fertilizer Granulating Machine is the latest technology fertilizer pellet making machine, which designed by the Institute of Agricultural Machinery, through Fertilizer processing equipment design, production experience is developed , has won state utility model patents. It is also known as adversion stirring tooth granulator, widely used in organic fertilizer granulation, it can directly make spherical particles without drying,crushing, can save a lot of energy, can save a lot of energy, produced particles is ball, organic content can be as high as 100%, achieving pure organic granulation,
degree of sphericity is not less than 0.7, grain diameter is between 0.3 and 3.0mm, granulating rate is not less than 80%. The size of the particle diameter, can be adjusted through material mixing amount and spindle speed.
This type of New Type Wet fertilizer Granulating Machine can adapt to a variety of different recipes, organic fertilizer compressive strength higher than that of the disc and drum, ball rate below 15%, particle size uniformity can according to user requirements by the native stepless speed adjustment function. This machine is most suitable for organic fertilizer granulation directly after fermentation, save drying process, reduce the manufacturing cost.
| Model | Power(kw) | Capacity(t/h) | Pellet size(mm) | Drum diameter(mm) | Drum length(mm) |
| GG-60 | 37 | 1-1.5 | Over 3 | 600 | 3000 |
1.Can change the voltage and plugs or not ?
We are manufacturer, mostly products we can change the voltage and plugs. Pls kindly tell me the voltage and plugs that you need before the order.
2.What Methods of Payment Are Acceptable?
Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.
Western Union: we accept 100% payment via the western union.
3.What is the procedure for making claims for damages or shortages?
All of our products will get fully test before delivery. All shortages must be reported to us within 7 days of receiving the shipment. If the goods were made by carriers then damages need to be reported to them and us. Please make sure that you keep the original shipping box for them to inspect. So please report to us damages made by carriers so that we may file a claim on your behalf.
