- Organic Fertilizer Making Machine
-
- Brand:GELGOOG
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:12 Months
- Country Of Origin:China
-
Organic Fertilizer making Machine
-
Organic Fertilizer making Machine
-
Organic Fertilizer making Machine
-
Organic Fertilizer making Machine
-
Organic Fertilizer making Machine
-
Organic Fertilizer making Machine
- Features
- Technical Data
- FAQ
Introduction Organic Fertilizer making Machine:
The Fertilizer pellet machine which is no dry normal production process, a shape, capacity can be 1-1.5t/h, 1.5-3t/h, with advantage of low investment and quick, good economic returns.

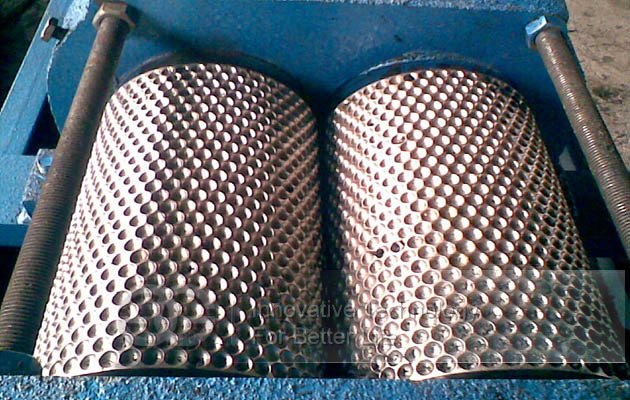

Dry material powder is fed from the top of the equipment, desaeration, screw-pre-press, enter into the gap between the two rollers that are rotating in opposite directions.
The pressed material falls down because of surface tension and gravity when passes through pressing section. The noddies shaped material then enters into breaking machine, been smashed by rotating knife.
The smashed material enters into granulator, and then the particles and part of powder material enters into sieve by the rolling knife, and then the product is separated.
The product up to standard will be conveyed to product silo by conveyor: the material under the sieve should be fed back and should be pressed again. The pressure might adjust by the hydraulic oil cylinder according the requirements of granulation. Sheet, bar and other shape of product might be procured by choose the relative shape of the grooves on the surface of the roller.
Advantages Organic Fertilizer making Machine:
--Wide application to raw materials like compound fertilizer, organic fertilizer, feed, etc. Can be used to process compound fertilizer of various concentrations(including organic fertilizer,inorganic fertilizer,biological fertilizer and magnetic fertilizer) .
--Popular in domestic fertilizer series production such as tombarthite fertilizer, ammonium bicarbonate fertilizer, ammonium persulfate fertilizer, etc. Its applicable raw materials are so wide that it can be used for the prilling of compound fertilizer, medicine, chemicals and forages, granulation rate is high.
Organic fertilizer pellet machine can produce all kinds of concentration and types fertilizer(including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizers, etc.) compound fertilizer, especially the rare earths, potash, producyion series compound fertilizer granulation.

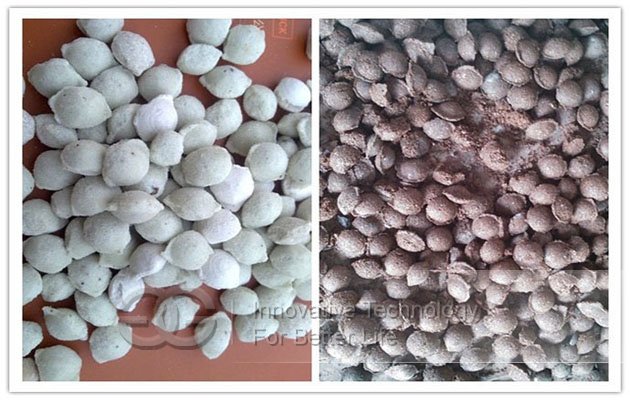

Organic fertilizer pellet machine uses squeezing principle to form fertilizer particles with diameters of 3.5-10mm in one time. It has higher granulating ratio of over 85%. Fertilizer pellet machine is the most popular granulating methods in no-drying (2%-5% moisture content) fertilizer process at room temperature. Less cost and quick granulating, thus it can bring fertilizer investment a good economic returns.
| Model | GGJ-3 |
| Power | 22KW |
| Capacity | 3t/h |
| Dimension | 1650*850*1800mm |
1.Can change the voltage and plugs or not ?
We are manufacturer, mostly products we can change the voltage and plugs. Pls kindly tell me the voltage and plugs that you need before the order.
2.What Methods of Payment Are Acceptable?
Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.
Western Union: we accept 100% payment via the western union.
3.What is the procedure for making claims for damages or shortages?
All of our products will get fully test before delivery. All shortages must be reported to us within 7 days of receiving the shipment. If the goods were made by carriers then damages need to be reported to them and us. Please make sure that you keep the original shipping box for them to inspect. So please report to us damages made by carriers so that we may file a claim on your behalf.
