Pizza Cone Making Machine - |price|picture|parameter|video|manufacturer|for sale|pdf|-GELGOOG

  • MOQ:1 set
  • Certification: CE
  • Supply Ability: 200 sets per month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • LOADING PORT: Qingdao Port

Application

This machine is used to make pizza cone

Main Feature

Can form 40 pieces per time, easy operation.
Features

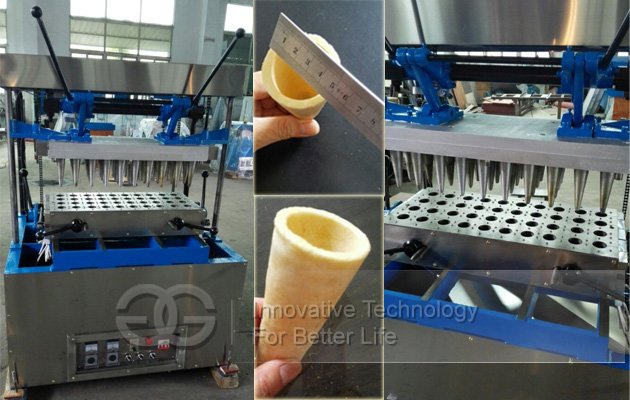

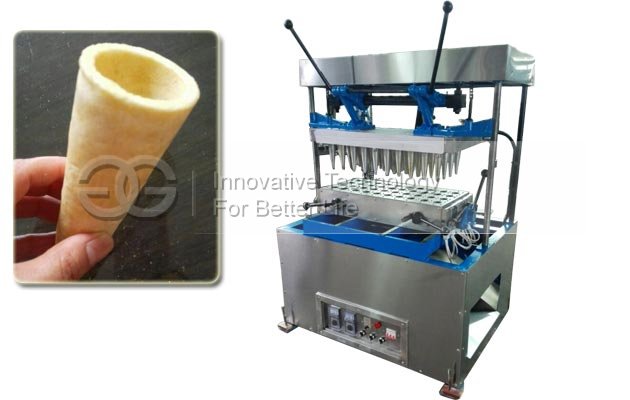

Pizza Cone Making Machine1. The base and lid, with four columns to form a whole pizza cone making machine, the first two columns as guide pillar, the base is the installation benchmark of mould, bearing the weight of the total weight of the machine at the same time, the roof is the installation of the upper die, die set below slide, convenient for the finished product collection. Electric box is set at the bottom of the rack behind the box.
2. Mold: Consists of the upper die and lower die and the manipulation of the rack
3. Electrical parts: electronic components concentration in a frame at the bottom of the drawer, loose screws can be pulled out as a whole
4. The machine is corollary equipment of the cone pizza machine equipment, used to fill cheese, meat, and other delicious stuffing.

Technical Data
Model GG40A
Capacity 40pcs/time
Pizza Cone Size Height12cm*dia.5cm*Thickness 5mm
Baking time 1-2min
Material of Machine Cast Iron Mould,Machine covered with carbon plate and stainless steel plate
Voltage 380V
Power 15-18KW
Dimension 1080*800*1440mm
Packing Size 1170*970*1550mm
Gross Weight 680kg
