Automatic Ice cream Cone Wafer Product Line - |price|picture|parameter|video|manufacturer|for sale|pdf|-GELGOOG

  • MOQ:1
  • Certification: CE
  • Supply Ability: 100 sets per month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • LOADING PORT: Qingdao port

Application

The machine is fully automatic to make ice cream cone wafer with high quality.

Main Feature

Equipped with Touch-screen and programmed by Siemens and PLC Software.
Features
The wafer production line includes: spare parts and tools for automatic electric waffle cup baking oven, beater, air compressor each one, and supplied with a set of accessories.

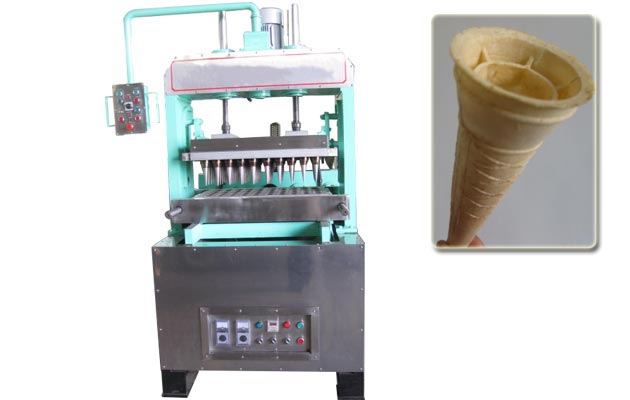

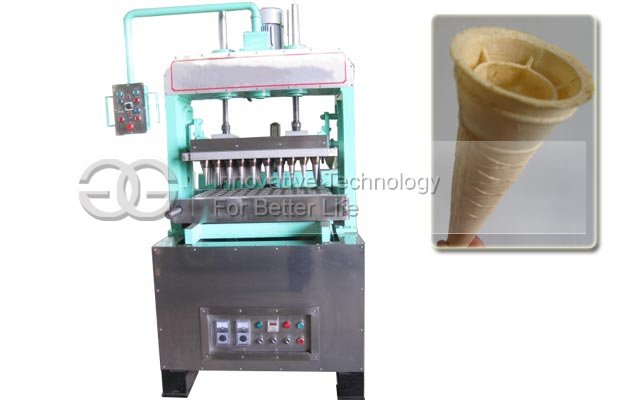

Baking Oven
The machine is fully automatic to make ice cream cone wafer with high quality.We can design the different baking machines to make different types of cones as required by clients.
Automatic wafer baking oven:Equipped with Touch-screen and programmed by Siemens and PLC Software.This unit is of  LPG to generate the heat energy to make ice cream cone.

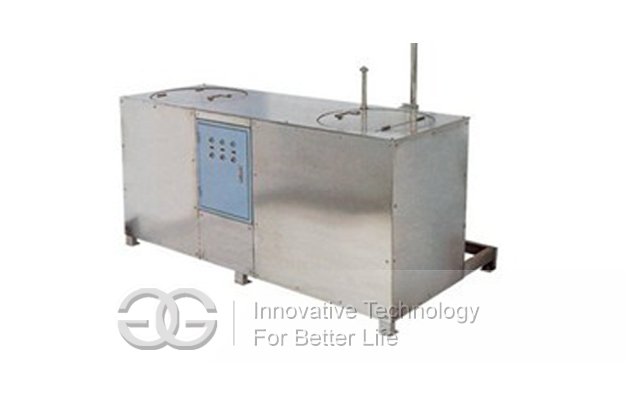

Wafer Blender machine
The machine is the mixing system, the first technology processing equipment in wafer manufacturing. It adopts the separate delivery and automatic circulation system.



Air  Compressor

Technical Data
Model  GGDL-14-1
Heating way  gas
Moulds number 14sets
Dimension of the mould  350x100x325mm
thickness of the products  2.0-3.2mm
Baking time  95~150s(thickness of the products <3.2m),the maxing temperature:180℃
Capacity  2000pieces/h
(according to the size which showed in your picture, one mould just can produce 7 cones)
Material for the part contacting the food Stainless steel
Mould material  Cast iron
Machine frame material     Carbon steel(paint spraying)
Thermal insulation material of the door Aluminium silicate and rock wool
Feeding system  frequency conversion system
Feeding system dynamo power 0.75kw
Gas blower 2.2kw
Voltage  380V,50 Hz,3 phases
Power for the main dynamo 1.5kw
Total power  5kw
Gas consumption  14m3/h
Dimension of the machine  3270mm*1560mm*2320mm
Weight  5800kg

FAQ
1.Q:Can I get some samples and what is the delivery time?
A:We are honored to sent you samples for quality check.for delivery time,10-20 days after confirm the sample order.
2.Q:Do you have the products in stock?
A:Yes,we have some model products can supply to you.
3.Q:Can I mix different modles in one container?
A:yes,different modles can be mixed in one container,but the quantity of each model should not be less than MOQ.
4.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the end of   the production,every product will be fully assembled and carefully tested before it's packed for shipment.
5.Q:What's is your warranty terms?
A:We offer different warranty terms for different products,please contact with us for detailed warranty terms.
