Wafer Biscuit Baking Machine Gas Type
moveleft
  • Wafer Biscuit Baking Machine Gas Type
  • Wafer Biscuit Baking Machine Gas Type
moveright

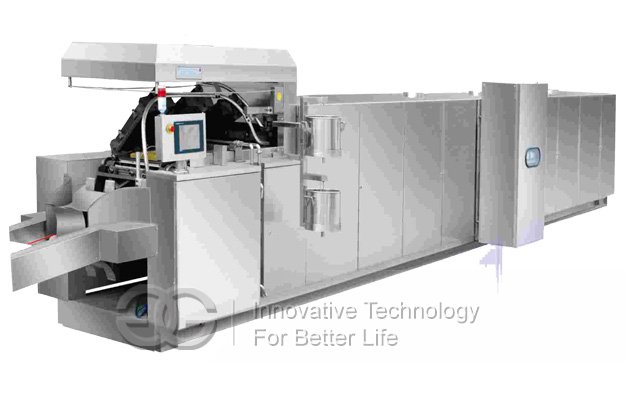

Wafer Biscuit Baking Machine Gas Type - |price|picture|parameter|video|manufacturer|for sale|pdf|-GELGOOG

  • MOQ:1
  • Certification: CE
  • Supply Ability: 100 sets per month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • LOADING PORT: Qingdao port

Application

This machine is used for baking wafer sheet.

Main Feature

It is automatic model. We can customize it into different capacity.
Features
This is very important equipment in the wafer production line. The wafer baking system uses LPG for heating of the baking plates. It is controlled by a PLC made by SIEMENS brand. The functions of the baking oven are fully automatic from spreading batter on the plates to the procedure of baked wafer sheets coming out of the oven. Baking is even and produces good quality wafer sheets for next procedure. In PLC there is a PID controller which is used to control the temperature of the baking plates automatically .The collection of required signal of PID is supplied by infrared sensor which is produced by RAYTEK of U.S.A .The oven status display and the data reset are supplied by SIEMENS by Japan. Contactor switch is supplied by SCHENEIDER Company in China. The stepping wheel bearings of the mould rack are SKF Explorer made in France. The pressing roller bearings are SKF Explorer made in Austria. The pneumatic components are supplied by FESTO/SMC. The main drive will be SEW Eurodrive of German brand. There is an automatic spurring-cleaned device at the bottom of the baking oven. There is second pressure relief valve from Madas. The floating system is new type. The pressing system, opening system and tension system are improved about the heat-treatment. The main bolts are screws are 8.8 or 12.6 grade. There is a safety cover for batter inductive switch.

Instructions:
1. The whole shell of the production line adopts 304 Stainless Steel in accordance with the health and safety standard.
2. In according to the clients ' requirements ,we can make a wide range of size and shape cream (chocolate ) filled wafer biscuit full automatically.
As the most important equipment of full-automatic wafer production line, tunnel electric baking machine has extraordinarily outstanding performances.
3. Unanimous heat colors of wafer block. Thanks to the scientific selection of heating components, superior material selection for baking plate and reasonable die carrier structure, the heat colors of the center and periphery of the wafer block having been baked are unanimous.
Technical Data
Model GGDL-63-1
Heat Source Electric
Moulds Quantity 63 pairs
Moulds Type Cast Iron Electric Plates
Plates Size 470*325*25mm
Size of Wafer Stripe 3.0*3.0*0.5
Wafer Size 2.0-3.0mm
Baking Time 90~120 seconds(the thickness of wafer<3mm, temperature is 180℃)
Capacity 2520pieces/h(the thickness of wafer:2.3mm)
SUS 304 Material Parts Oven door, hood, pulp barrels, shell
SUS 304 Material Thickness 1.0mm(±0.05mm)
Food Contacting Parts Material SUS 304 or Cast Iron
Touch Screen 10 inches, E-view
Mould Base Cast Iron
Oven Frame High Quality Carbon Steel, Silver paint spraying antirust
Walking Wheel Bearing HRB
Door Insulation Materials Aluminum silicate, rock wool
Slurry System Frequency conversion slurry system
Slurry Motor 0.75kw, SEW
Leaching pulp, the host drive inverter Tai Da Brand
Circuit breaker, ac contactor, button Chint, Shuangke
Main Motor 1.5kw, Jin Fuling
Motor Reducer Xidi transmission
Max operating current 420A/350V AC
Max power consumption About 230KW
Electric 380V, 50Hz, 3 phases
Dimension 12380*1560*2320mm
Weight 11500KG

FAQ
1.Q:Can I get some samples?and what is the delivery time?
A:We are honored to sent you samples for quality check.for delivery time,10-20 days after confirm the sample order.
2.Q:Do you have the products in stock?
A:Yes,we have some model products can supply to you.
3.Q:Can I mix different modles in one container?
A:yes,different modles can be mixed in one container,but the quantity of each model should not be less than MOQ.
4.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the end of   the production,every product will be fully assembled and carefully tested before it's packed for shipment.
5.Q:What's is your warranty terms?
A:We offer different warranty terms for different products,please contact with us for detailed warranty terms.
